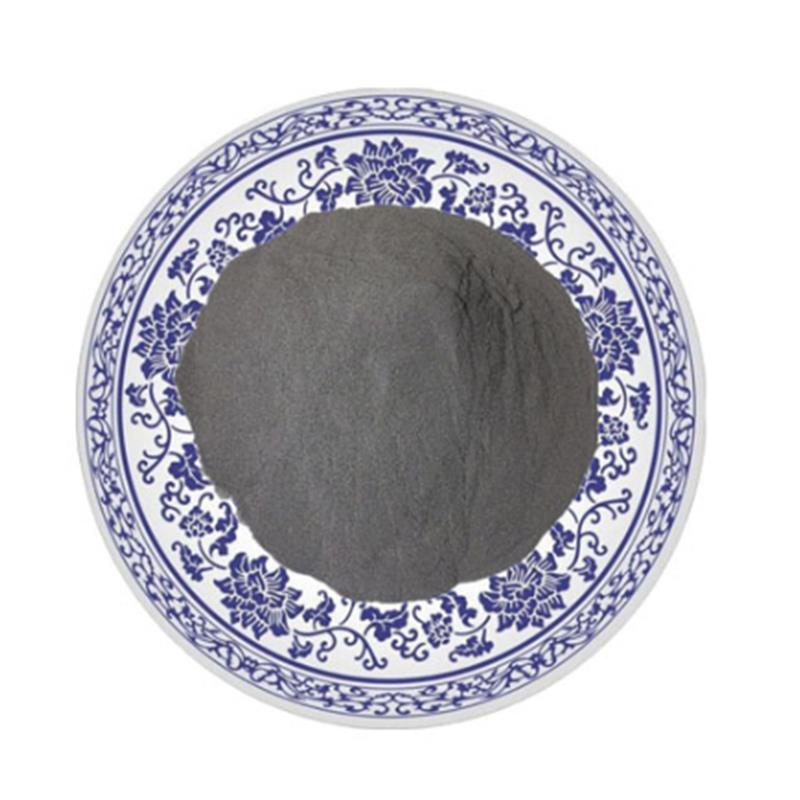

Conductive Nickel Powder

Data Sheet

Model	Grainsize（μm）	SSA（m²/g）	PSA（μm）				Bulk density (g/cm³)
Model	Grainsize（μm）	SSA（m²/g）	D10	D50	D90	D99.9	Bulk density (g/cm³)
YS0080R	0.08	7.90-9.60	≤0.15	≤0.30	≤0.65	≤1.70	≥1.90
YS0151	0.15	3.9-5.2	≤0.16	≤0.35	≤0.70	≤1.7	≥2.00
YS1001	0.18	3.8-4.2	≤0.17	≤0.38	≤0.75	≤1.75	≥2.10
YS0201	0.20	2.93-3.75	≤0.18	≤0.40	≤0.80	≤1.80	≥2.20
YS0301	0.30	2.1-2.4	≤0.20	≤0.45	≤0.90	≤2.50	≥2.85
YS0401	0.40	1.50-1.90	≤0.25	≤0.55	≤1.00	≤3.00	≥3.00
YS0601	0.60	1.05-1.25	≤0.50	≤1.20	≤2.00	≤4.50	≥3.20

Download Latest Catalog

Nickel powder can be divided into electrolytic nickel powder, reduced nickel powder and atomized nickel powder according to the process. Nickel powder has a wide range of uses in different fields. Electrolytic nickel powder and reduced nickel powder are the main raw materials for powder metallurgy. Nickel powder can also be used as a conductive coating substrate, battery materials, functional conductive fillers, etc. It can be added to coatings, concrete adhesives, inks, plastics, and rubber to make conductive, electromagnetic shielding, antistatic, etc. Products are widely used in the fields of electrical conduction, electromagnetic shielding, and antistatic in various industries such as electronics, electromechanical, communications, printing, aviation, aerospace, and military. For example, computers, mobile phones, electronic medical equipment, electronic instruments and so on.

Application:

1. Magnetic fluids produced by nano-iron, nano-cobalt, nano-nickel and nano-alloy powders for magnetic fluids have excellent performance, and can be widely used in the fields of sealed shock absorption, medical equipment, sound adjustment, light display, etc.

2. High-efficiency catalyst: Due to the large specific surface area and high activity of nano-nickel and ultra-fine nickel powder, nano-nickel powder has a strong catalytic effect, which can be used for the hydrogenation of organics and the treatment of automobile exhaust;

3. High-efficiency combustion promoter: Adding nano-nickel powder to the solid fuel propellant of the rocket can greatly improve the combustion speed, combustion heat, and stability of the combustion:

4. Conductive paste: Electronic paste is widely used in wiring, packaging, and connection in the microelectronics industry, which plays an important role in miniaturization of microelectronic devices. The electronic paste made of nickel, copper, aluminum, and silver nano-powder has excellent performance and is conducive to further miniaturization of the circuit;

5. High-performance electrode materials: With nano nickel powder supplemented with appropriate technology, electrodes with huge surface area can be manufactured, which can greatly improve the discharge efficiency;

6. Activated sintering additive: Due to the large surface area and the proportion of surface atoms, nano-powder has a high energy state and strong sintering ability at lower temperatures. It is an effective sintering additive and can greatly Reduce the sintering temperature of powder metallurgy products and high-temperature ceramic products;

7. Metal and non-metallic surface conductive coating treatment: Due to the highly activated surface of nano-aluminum, nano-copper and nano-nickel, the coating can be applied at a temperature below the melting point of the powder under oxygen-free conditions. This technology can be applied to the production of microelectronic devices.

FAQ:

Q1. How do you make sure your products quality?

A: We test our products first after we finish our production, and we test again before every delivery, even sample. And if you need, we would like to accept third party to test. Of course, if you like, we would like to provide sample to you to test.

Q2. What is your payment term?

A: As usual, we would like to accept 100% T/T in advance. But for the first time, we understand there is no any trust between us, so we also accept 50% deposit and balance 50% at the sight of B/L.

Q3. What is your term of delivery?

A: FOB, EXW, CIF, CFR, DDU.

Q4. How about your delivery time?

As usual, if there is stock, we will deliver to you after testing, so it may take 2days after getting your order; but if there is no stock, we have to produce for you, that need 7-15days.

Q5. Can you produce according to the samples?

A: We are a professional producer metal powders in China for many years, we have our own production equipment, so we would like to produce according to your samples.
